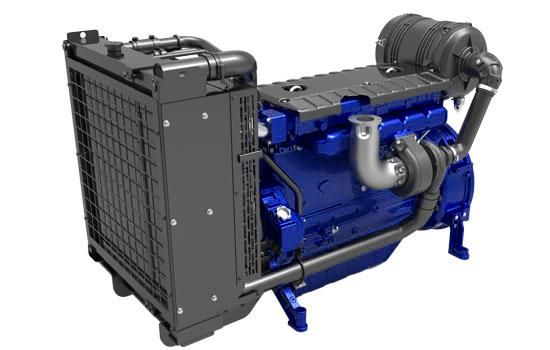

6M11 power-kit
Subtotal: $1.00

Free Shipping

Free standard shipping on orders over $99 Estimated to be delivered on 12/01/2024 - 15/10/2024.

Free Returns

Learn More.
Description
Description
x

Product portfolio

ModelDisplacement
（L）		TypePrime power/speed
(kWm/rpm)		Standby power/speed
(kWm/rpm)		Recommended prime power of Generator
(kWe)		Recommended standby power of Generator
(kWe)		Technical route
6M11G150/56.75Inline 6-cylinder128/1500140/1500108120 Elec., T/A-A
6M11G165/56.75Inline 6-cylinder138/1500152/1500120132 Elec., T/A-A
6M11G110/66.75Inline 6-cylinder120/1800132/1800100110 Elec., T/A-A
6M11G135/66.75Inline 6-cylinder144/1800158/1800120135 Elec., T/A-A
6M11G160/66.75Inline 6-cylinder164/1800180/1800145160 Elec., T/A-A
6M11G176/66.75Inline 6-cylinder/200/1800/176 Elec., T/A-A

Product advantage

    Special structure

  • Small size and light weight.
  • The intake/exhaust structure is optimized, reducing flow resistance and the height of the engine.
  • The special flat-bottomed oil sump is used, which reduces the height of the engine, as well as vibration and noise.
  • The rear-mounted air filter is used, which reduces the width of the engine and ensures easy maintenance.

    Economy

  • Fuel consumption for the load rate between 60% and 90% is optimized specially, such that low fuel consumption is guaranteed.

    Environmental adaptability

  • Low temperature adaptability: The engine can start directly at -10℃ without auxiliary measures and smoothly at -30℃ by means of intake preheating..
  • Plateau adaptability: The engine can output rated power when the altitude is less than 2,000m, and work reliably when the altitude is greater than 2,000m.

    High level of platform

  • The engine is modular in design with high level of platform, the maintenance parts of the whole series are universal.
